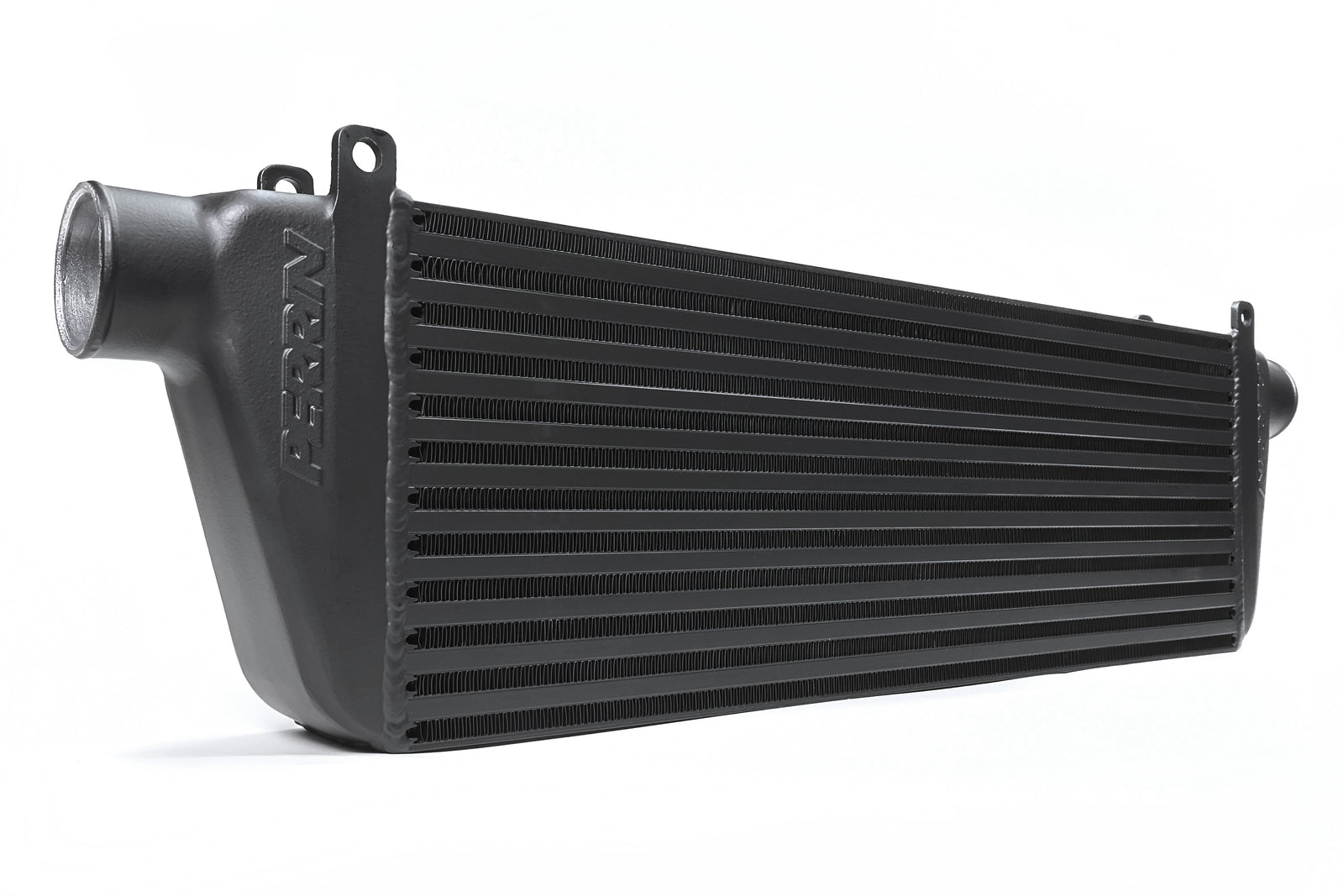

The PERRIN Intercooler Core is 28” long x 9.25” tall x 3.5” deep with a volume of 906.5 cu-in. which gives the PERRIN Intercooler the best overall design for cooling and pressure drop! The 3/8” bar and plate design is more durable than the tube and fin design and has the ability to withstand rocks and other debris.

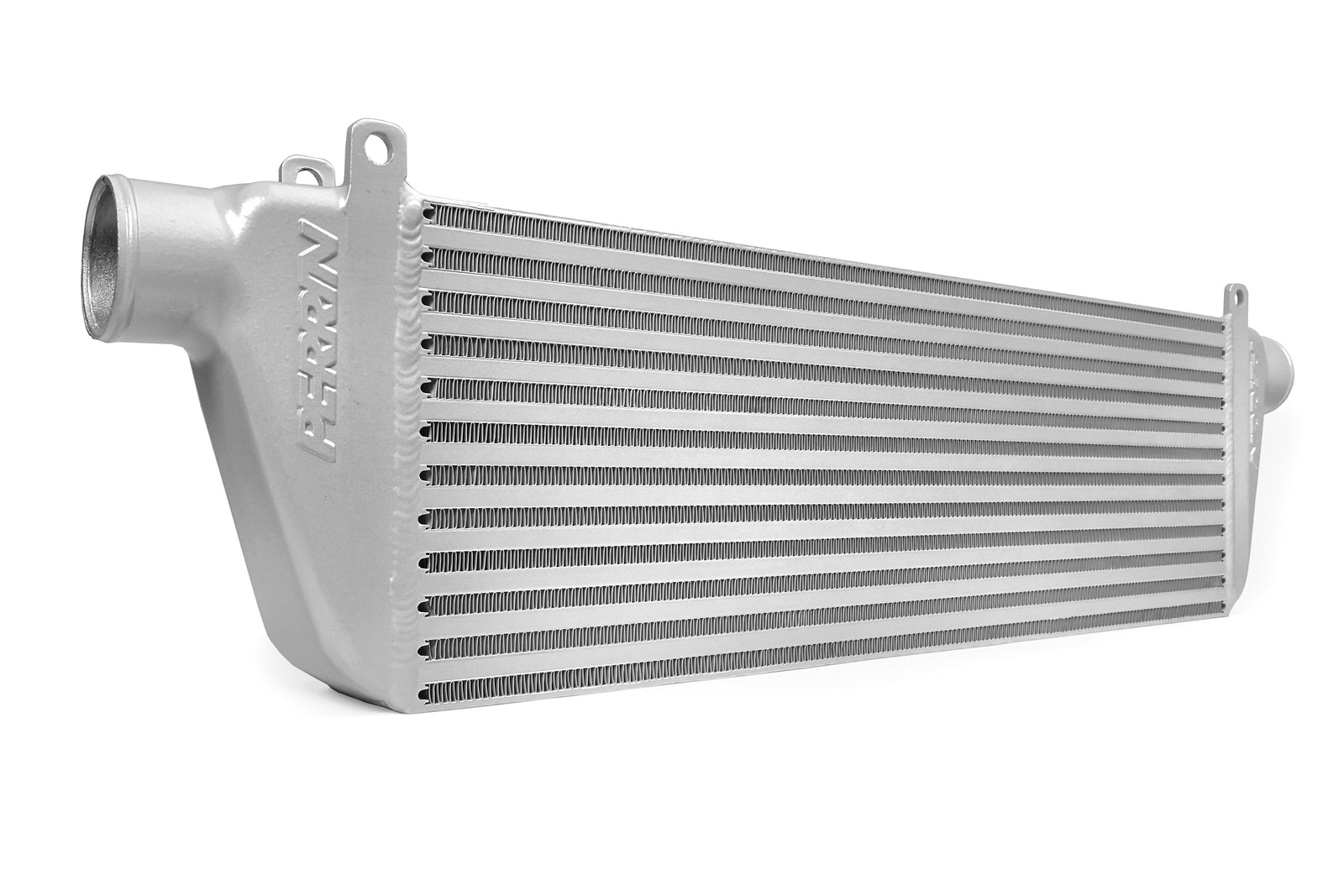

Every PERRIN Intercooler Core features a powder coat finish to protect your intercooler from the elements. There are two finish options: bright silver or stealth black.
PERRIN End Tanks are perfectly designed to disperse hot charge air across the entire intercooler core. By eliminating 90º corners and adding a smooth, gradual taper from top to bottom, turbulence is eliminated. Each end tank incorporates an innovative mounting tab which secures the core to the mounting beam.
PERRIN Intercooler Support Beams are constructed from boxed steel and are powder coated black. Competitors use inexpensive aluminum bumper beams which saves a little weight but can be easily destroyed in a collision.
With boost tubes up to 2.25" diameter PERRIN Boost Tubes feature smooth routing while remaining large enough to flow more WHP than most turbos can put out. They are CNC mandrel bent from lightweight aluminum tubing and feature an oversized, beaded end to ensure the hose clamps and couplers stay connected and sealed, no matter your boost level!
PERRIN Boost Tubes are powder coated for protection from the elements, making them look awesome for years to come. Boost tubes for this kit come in two finish options, texture powder coated black, and red.
PERRIN Boost Tubes take the smoothest, shortest path to get air to and from the intercooler. Off the turbo a smooth offset coupler carries the hot side air charge through the engine bay past the battery, and down behind the radiator to the intercooler core. Cold side boost tubes are mounted as high as possible in the engine compartment to clear all turbo and intake combinations.
Even the slightest leak can cause your vehicle to lose power, literally bleeding turbo boost pressure out the intercooler. PERRIN is one of the only intercooler manufactures who pressure tests every intercooler. We pressurize every intercooler to 50 psi on our special jigs. This ensures you never get a core with a leak!

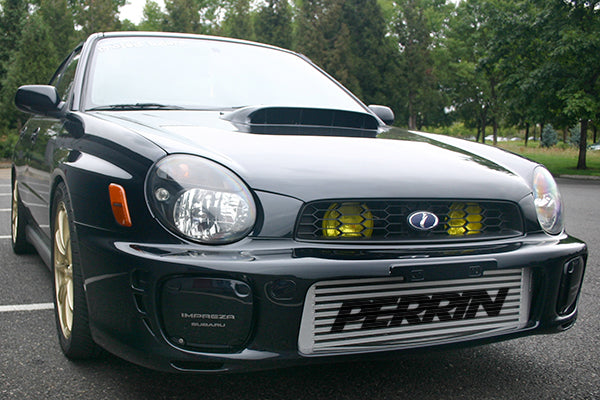

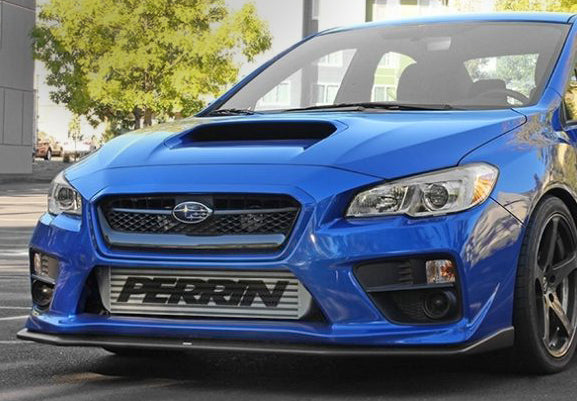

Included with our front mount intercooler is a free PERRIN logo intercooler stencil. Use the stencil to easily paint the PERRIN logo across the front of your intercooler. Simply peel, stick, paint, and remove!
Every PERRIN Front Mount Intercooler Kit includes a new PERRIN Coolant Overflow Tank adding clearance for boost tube routing. The PERRIN Coolant Overflow Tank is protected from the elements with a black texture powder coating.

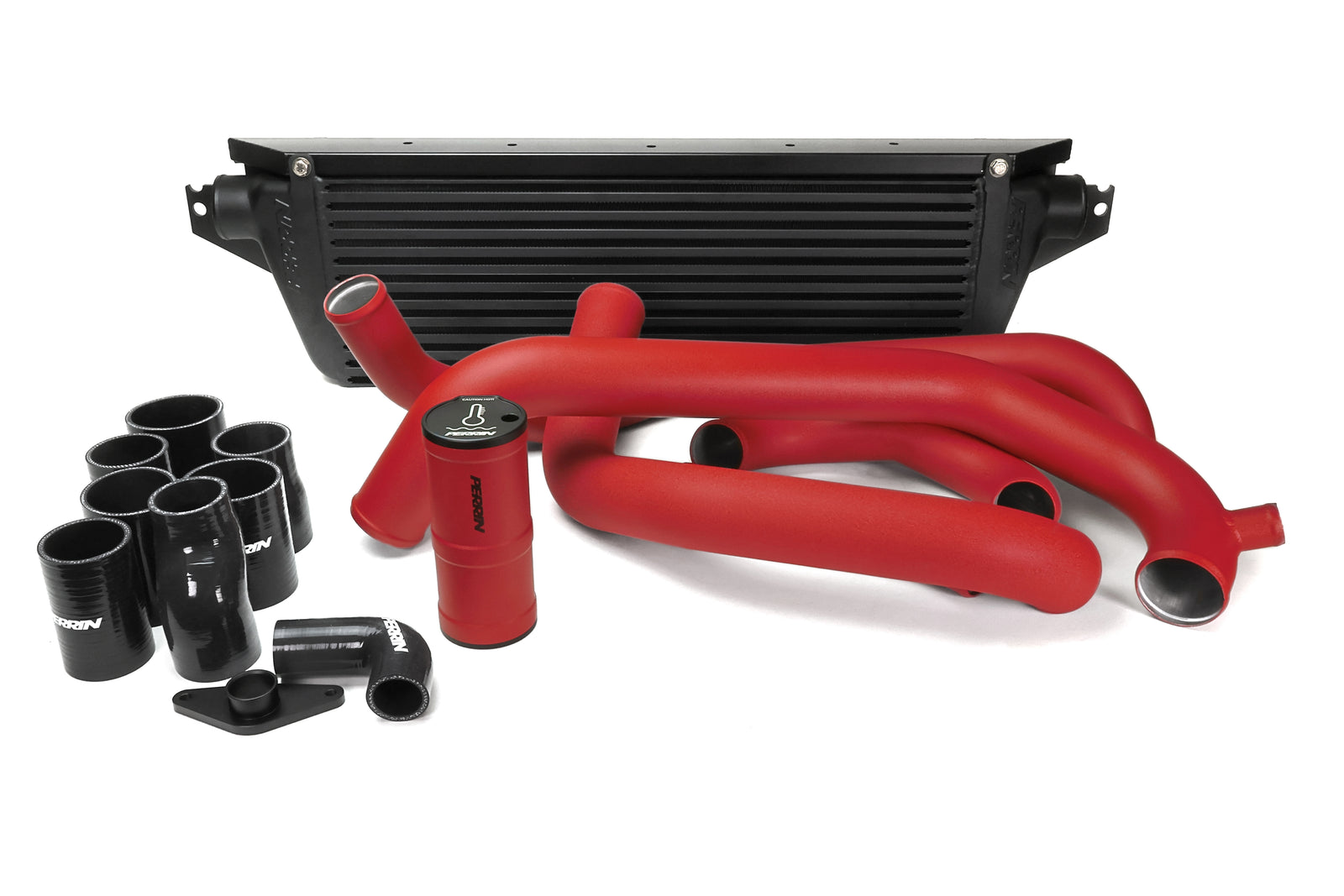

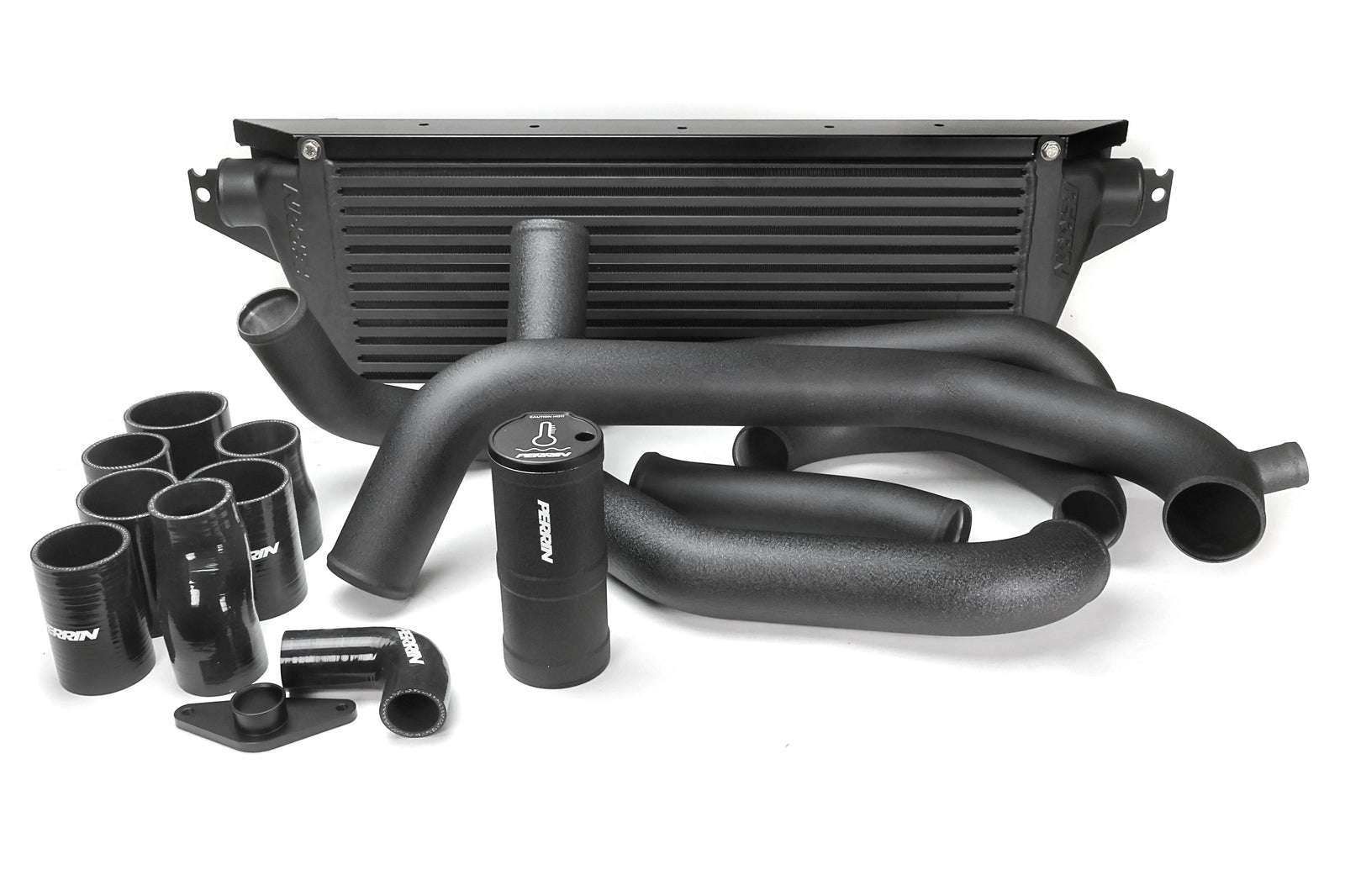

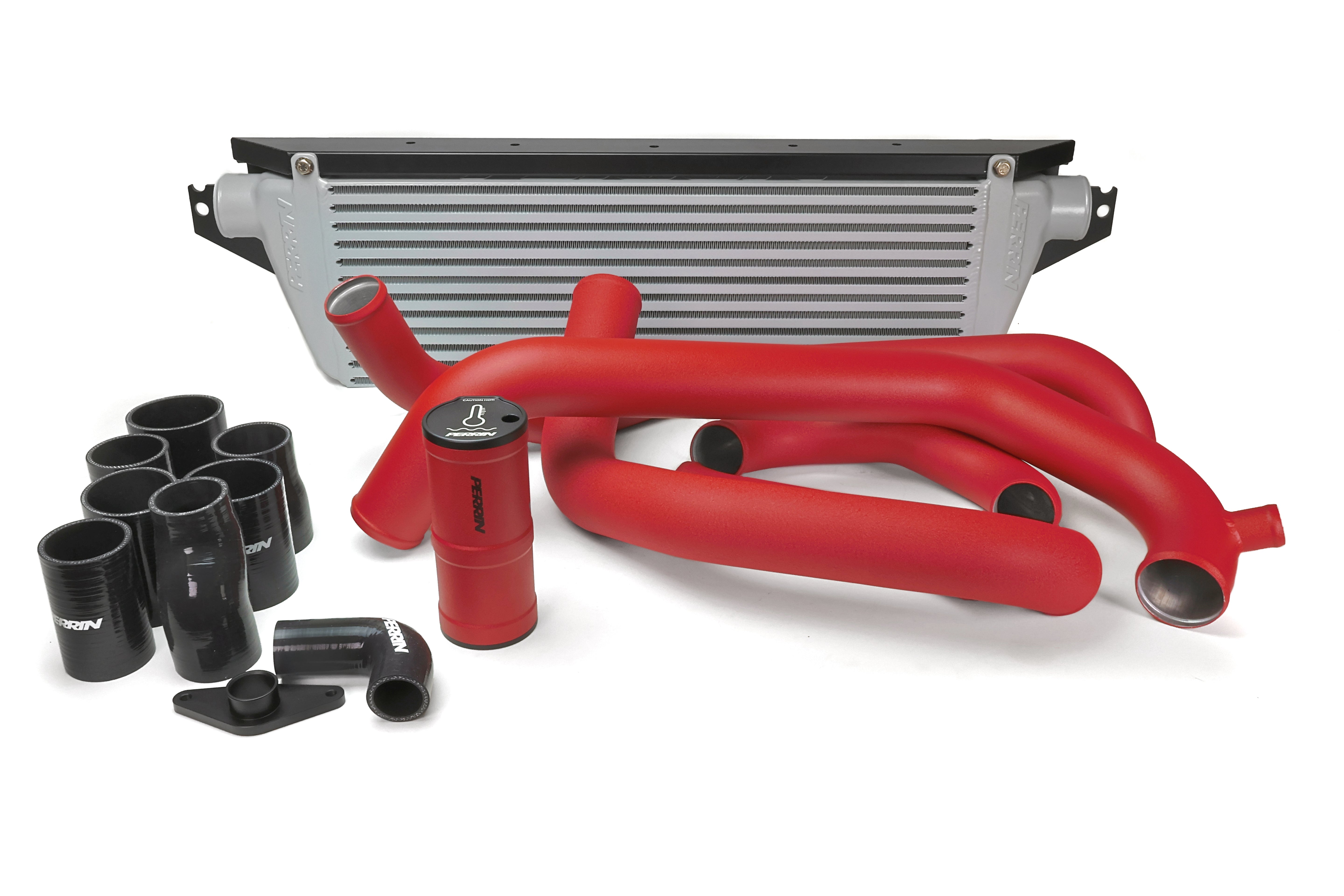

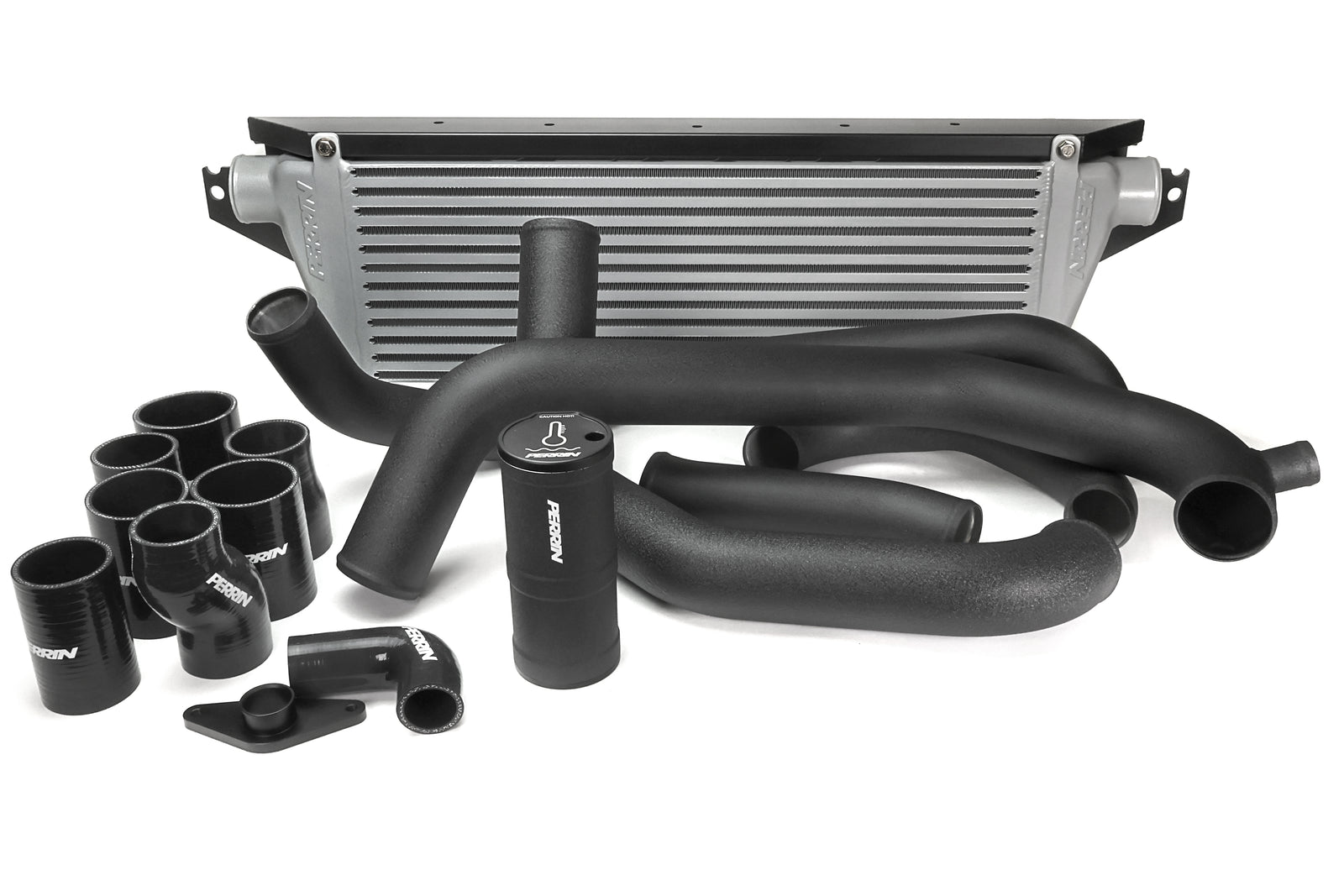

PSP-ITR-KIT1-BKBK = Black Intercooler and Black Tubes
PSP-ITR-KIT1-BKRD = Black Intercooler and Red Tubes
PSP-ITR-KIT1-SLBK = Silver Intercooler and Black Tubes
PSP-ITR-KIT1-SLRD = Silver Intercooler and Red Tubes
(1) PERRIN Front Mount Intercooler Core with Bumper Beam
(1) Set of PERRIN Boost Tubes
(1) PERRIN Coolant Overflow Tank
(1) Set of Clamps

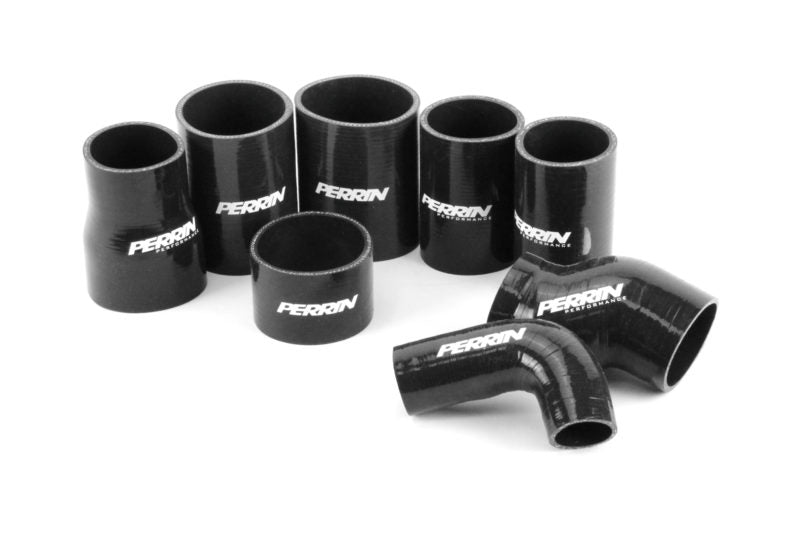

(1) Set of PERRIN Silicone Couplers
(1) PERRIN License Plate Frame
(1) PERRIN Intercooler Stencil
All necessary installation hardware
Warranty & Instructions
PERRIN Performance warrants to the original purchaser that all PERRIN products will be free from defects in material and workmanship within a sixty (60) month period from the date of purchase. *Some exclusions apply
WARNING: Cancer and Reproductive Harm
This product is legal in California only for racing vehicles which may never be used upon a highway. Check your local and federal laws prior to installation.
