Front Mount Intercooler Kit for 2015-2021 STI

$2,570.00 $2,184.50

  • SKU: PSP-ITR-KIT5-SLRD
  • In Stock

Front Mount Intercooler Kit for 2015-2021 STI

$2,570.00 $2,184.50

  • SKU: PSP-ITR-KIT5-SLRD
  • In Stock
Color -Red
Select Vehicle
Qty
Add to Cart

Overview

PERRIN Front Mount Intercooler Kits are ideal for those who want to get the most out of their turbocharged Subaru. Add power and a bold new look all in one with a PERRIN FMIC!

Jump To

No Tuning Required

Increase horsepower and torque without ECU recalibration or tune! This part is designed and tested to work safely on your vehicle without any tuning required! However, more power can be gained with proper ECU tuning! Confirm any tune or recalibration you add is specific for ALL modifications added to the vehicle. Questions? Contact [email protected].

Intercooler Construction

The PERRIN Intercooler Core is 28” long x 9.25” tall x 3.5” deep with a volume of 906.5 cu-in. which gives the PERRIN Intercooler the best overall design for cooling and pressure drop! The 3/8” bar and plate design is more durable than the tube and fin design and has the ability to withstand rocks and other debris.

Intercooler Finish

Every PERRIN Intercooler Core features a powder coat finish to protect your intercooler from the elements. There are two finish options: bright silver or stealth black.

End Tanks Design

PERRIN End Tanks are perfectly designed to disperse hot charge air across the entire intercooler core. By eliminating 90º corners and adding a smooth, gradual taper from top to bottom, turbulence is eliminated. Each end tank incorporates an innovative mounting tab that secures the core to the mounting beam.

Intercooler support beam

PERRIN Intercooler Support Beams are constructed from boxed steel and are powder-coated black. Competitors use inexpensive aluminum bumper beams which save a little weight but can be easily destroyed in a collision.

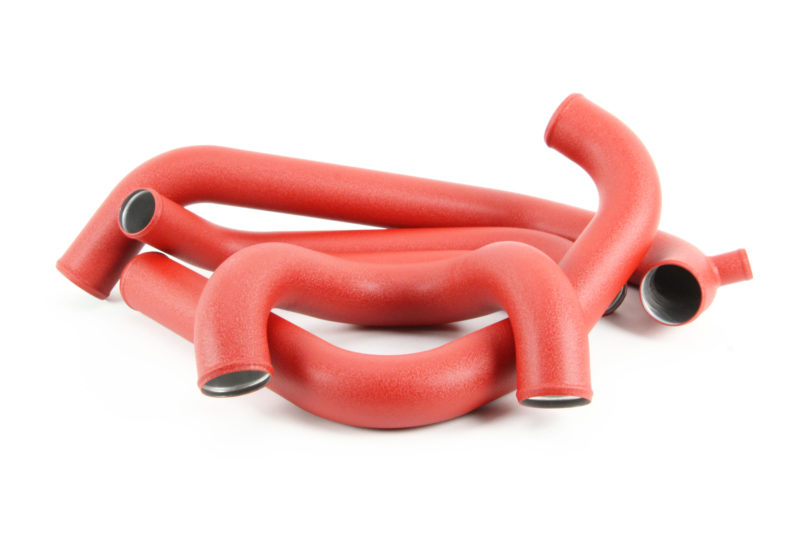

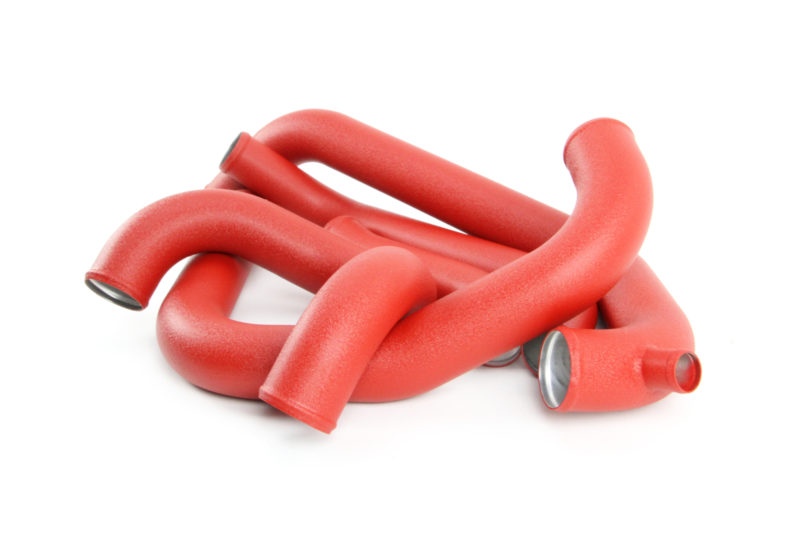

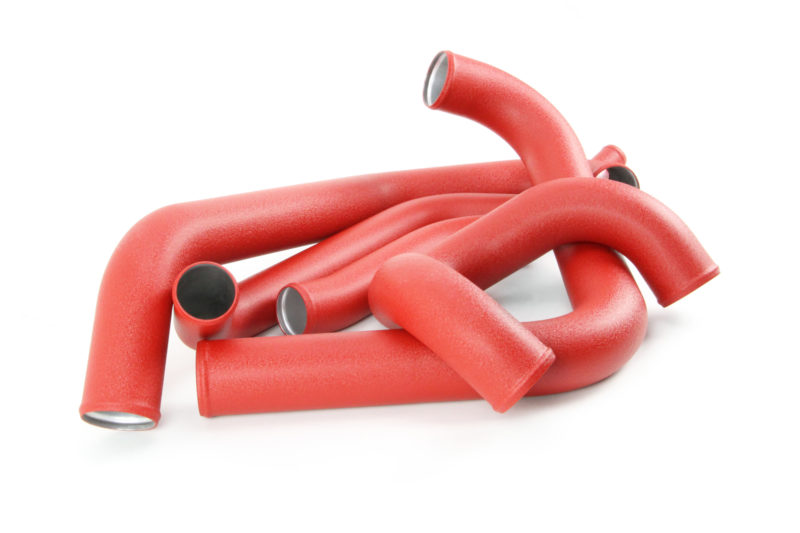

Boost Tube Construction

With boost tubes up to 2.75" in diameter, PERRIN Boost Tubes feature smooth routing while remaining large enough to flow more WHP than most turbos can put out. They are CNC mandrel bent from lightweight aluminum tubing and feature an oversized, beaded end to ensure the hose clamps and couplers stay connected and sealed, no matter your boost level!

Boost Tube Finish

PERRIN Boost Tubes are powder-coated for protection from the elements, making them look awesome for years to come. Boost tubes for this kit come in three finish options, glossy neon yellow and texture powder-coated black or red.

Boost tube Routing

PERRIN Boost Tubes take the smoothest, shortest path to get air to and from the intercooler. Off the turbo, a smooth offset coupler carries the hot side air charge through the engine bay past the battery, and down behind the radiator to the intercooler core. Cold side boost tubes are mounted as high as possible in the engine compartment to clear all turbo and intake combinations.

Includes Intake for 2018+

The PERRIN Front Mount Intercooler Kit for 2018+ STI's includes a color-matched cold air intake system. This features a CNC mandrel-bent aluminum tube, an airflow straightener, and a dry flow filter.

Intercooler Pressure Testing

PERRIN is one of the only intercooler manufacturers who pressure test every intercooler to 50 psi. Even the slightest leak can bleed turbo boost pressure out of the intercooler and cause your vehicle to lose power.

Intercooler stencil

Included with our front mount intercooler is a free PERRIN logo intercooler stencil. Use the stencil to easily paint the PERRIN logo across the front of your intercooler. Simply peel, stick, paint, and remove!

Coolant reservoir

Every PERRIN Front Mount Intercooler Kit includes a new PERRIN Coolant Overflow Tank adding clearance for boost tube routing. The PERRIN Coolant Overflow Tank is protected from the elements with a black texture powder coating.

Washer Tank

The 2015+ PERRIN FMIC kit includes a 6061 aluminum, high-capacity washer fluid tank. This provides extra space for proper boost tube routing.

Product Details

  • Horsepower Support 1000+ HP

PSP-ITR-KIT5-BKBK = Black Intercooler and Black Tubes
PSP-ITR-KIT5-BKRD = Black Intercooler and Red Tubes
PSP-ITR-KIT5-SLBK = Silver Intercooler and Black Tubes
PSP-ITR-KIT5-SLRD = Silver Intercooler and Red Tubes
PSP-ITR-KIT6-BKBK = Black Intercooler and Black Tubes
PSP-ITR-KIT6-BKRD = Black Intercooler and Red Tubes
PSP-ITR-KIT6-SLBK = Silver Intercooler and Black Tubes
PSP-ITR-KIT6-SLRD = Silver Intercooler and Red Tubes

PSP-ITR-KIT5

(1) PERRIN Front Mount Intercooler Core with Bumper Beam
(1) Set of PERRIN Boost Tubes
(1) PERRIN Coolant Overflow Tank

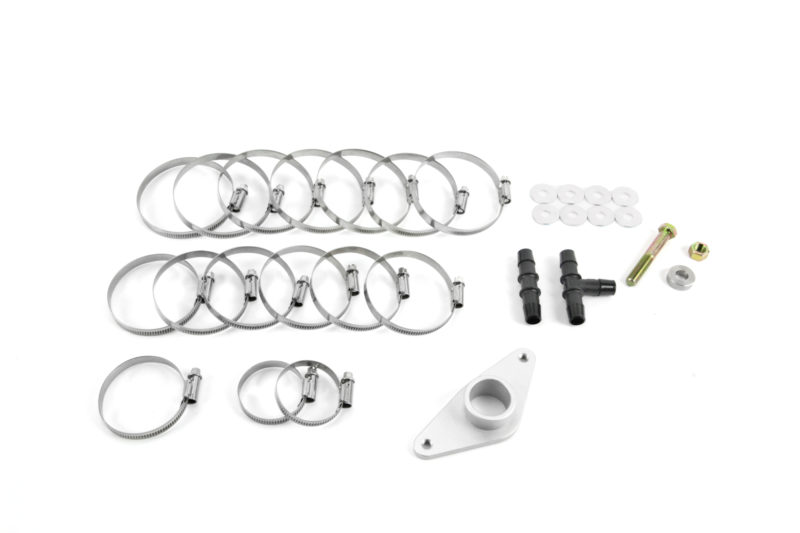

(1) Set of Clamps

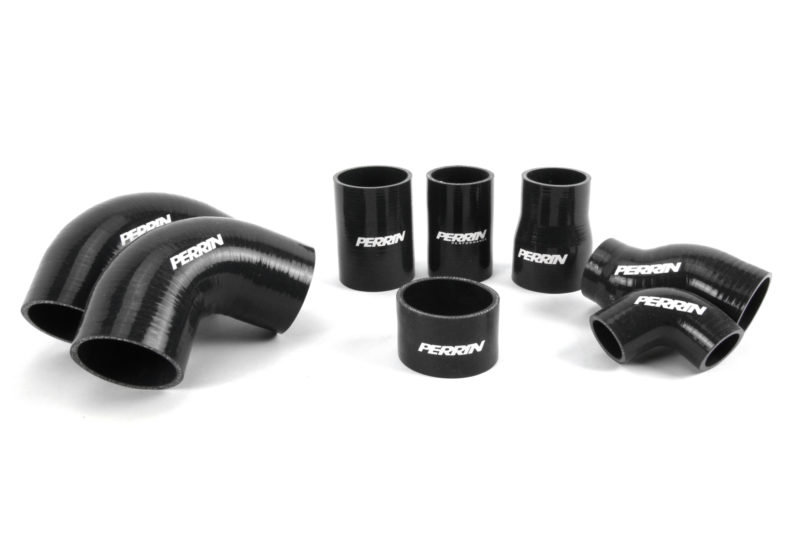

(1) Set of PERRIN Silicone Couplers
(1) PERRIN License Plate Frame
(1) PERRIN Intercooler Stencil
All necessary installation hardware
Warranty & Instructions

PSP-ITR-KIT6

(1) PERRIN Front Mount Intercooler Core with Bumper Beam
(1) Set of PERRIN Boost Tubes
(1) PERRIN Cold Air Intake
(1) PERRIN Coolant Overflow Tank
(1) Set of Clamps
(1) Set of PERRIN Silicone Couplers
(1) PERRIN License Plate Frame
(1) PERRIN Intercooler Stencil
All necessary installation hardware
Warranty & Instructions

NOTE:

For 2018+ STI models, this intercooler includes an intake system that requires no tuning to operate properly and safely! However, if you choose to add an upgraded downpipe or tune, you must choose a tune that is specific to either the PERRIN or AEM Intake System. MAF curves for any other intake (including the OEM Air Box) will not work properly and you will damage your engine! Always contact a qualified tuner prior to adding any ECU mapping to your vehicle! If your tuner requests a MAF Curve, we do have those available upon request. Questions? Please contact [email protected]

  • 2015 Subaru STI
  • 2016 Subaru STI
  • 2017 Subaru STI
  • 2018 Subaru STI
  • 2019 Subaru STI
  • 2020 Subaru STI
  • 2021 Subaru STI
5 Year Warranty

PERRIN Performance warrants to the original purchaser that all PERRIN products will be free from defects in material and workmanship within a sixty (60) month period from the date of purchase. *Some exclusions apply

Proposition 65

warning.pngWARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov

Off Road Use Only

This product is legal in California only for racing vehicles which may never be used upon a highway. Check your local and federal laws prior to installation.

Email Our Tech Department: [email protected]
Download Instructions
Gallery

Installation Gallery
