EBCS Pro Boost Control Solenoid

$182.00 $154.70

  • SKU: ASM-TAC-729
  • In Stock

EBCS Pro Boost Control Solenoid

$182.00 $154.70

  • SKU: ASM-TAC-729
  • In Stock
Select Vehicle
Qty
Add to Cart

Overview

The PERRIN Electronic Boost Control Solenoid (EBCS) Pro is designed to control today's high performance turbochargers with its ultra-fast response and bomb-proof design.

Jump To

Tuning Required

Proper ECU Tuning is required for the safe operation of the engine with this product. Engine performance and fuel economy will also suffer without tuning. Check all local, state, and federal laws prior to purchase and installation. For recommendations on tuning options, please email: [email protected]

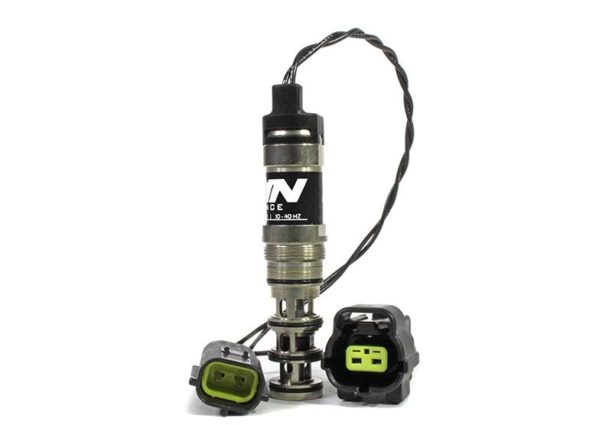

Custom High Performance Solenoid

The custom made solenoid coil and valve are made specific to PERRIN specs. This allows the valve to operate almost two times faster and flow almost 50% more than competitors' designs. The EBCS Pro also works with OEM ECU calibrations and reduces overboost conditions that commonly occur, all without causing Check Engine Lights.

To fully utilize the EBCS Pro, an ECU recalibration is required. Contact our tech department at [email protected] for further info.

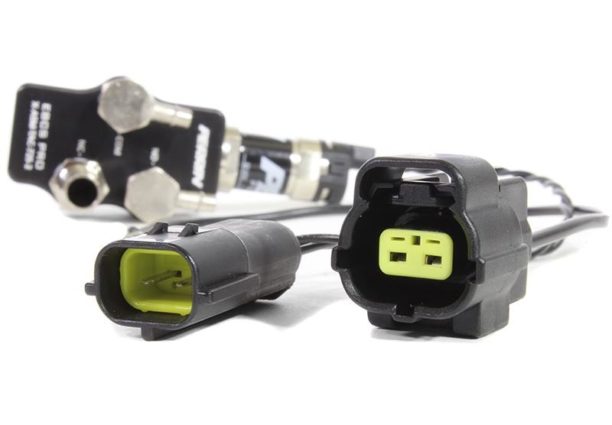

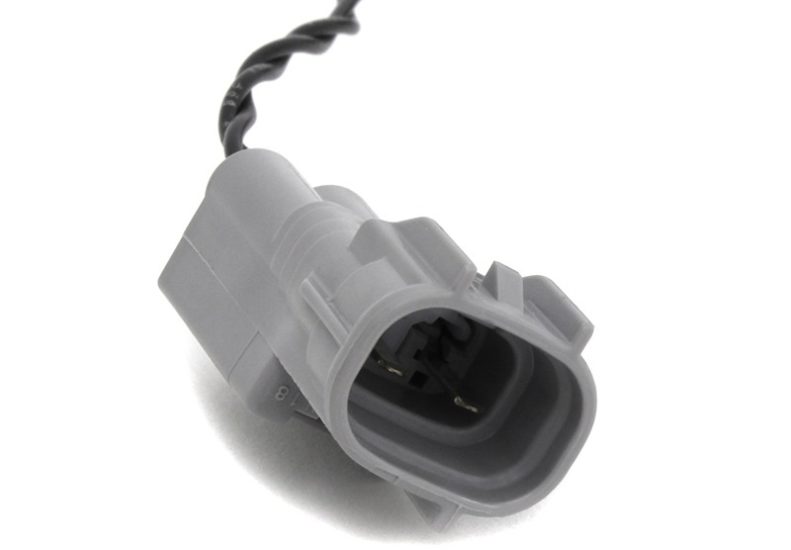

Direct Plug & Play

Our OEM male connector is specific to all Subaru applications. As for 2015-2018 WRX models, the PERRIN male OEM connector is specific to the 2015-2018 WRX (FA20 DIT). This ensures a properly sealed and solid connection between the EBCS Pro and the ECU. Unlike competitors' products that require additional parts and labor, our unique design saves time and makes for a cleaner and simpler install.

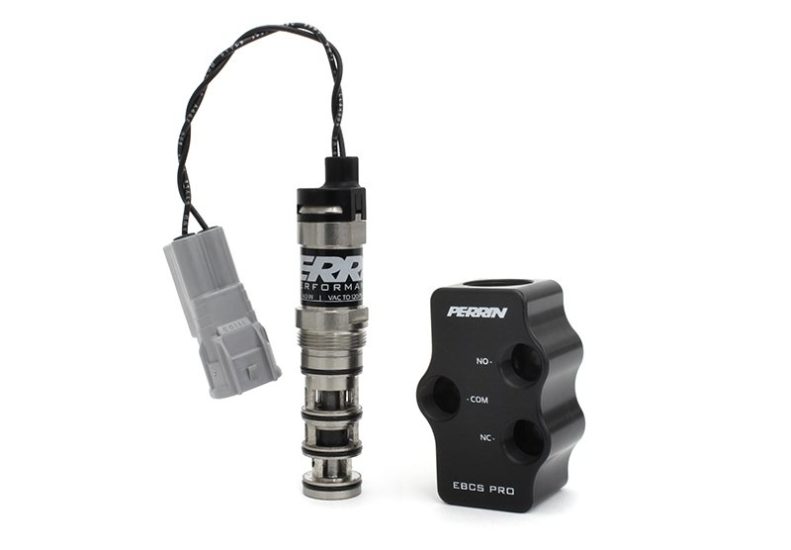

Solenoid Construction

The main valve body of the EBCS Pro is made of corrosion-resistant, nickel-plated brass with proper seals to withstand the temperatures and oils seen in a boost control system. Other features unique to the PERRIN EBCS Pro:

  • Short piston stroke
  • Balanced piston, immune to different boost levels
  • Very few parts
  • Solenoid isolated from contaminated air
  • Extremely long life
  • Operates in vacuum up to 120 psi

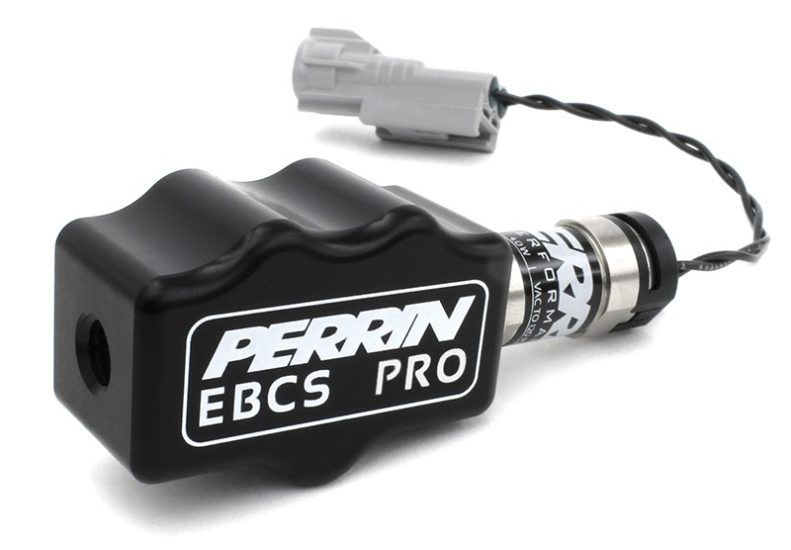

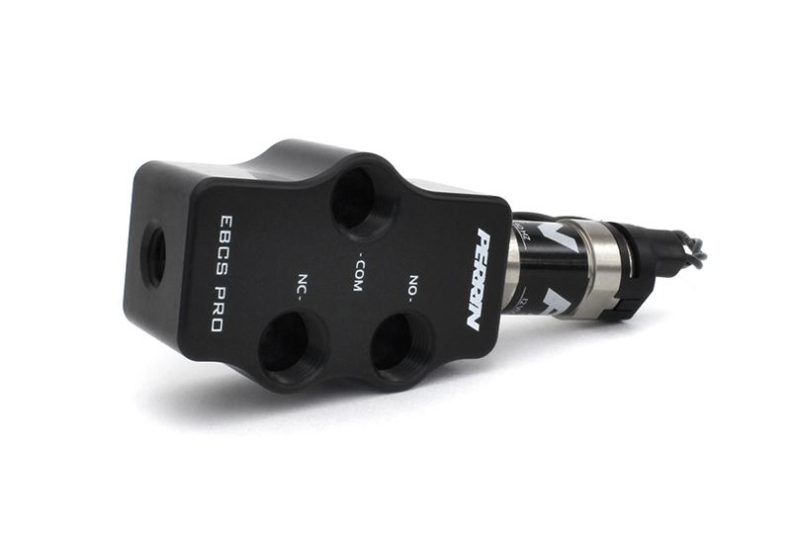

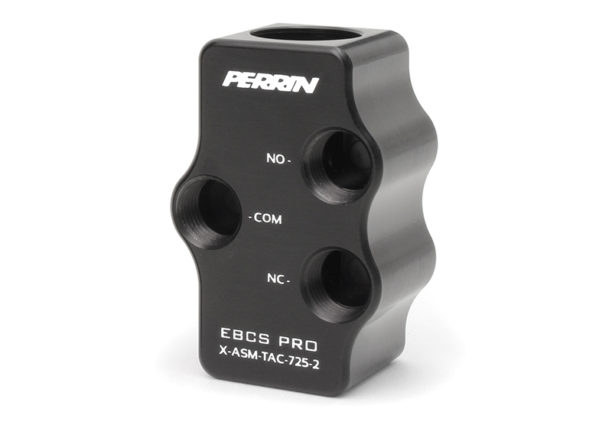

Anodized Aluminum Multi-port Body

The body of the EBCS Pro is made of 6061 aluminum so it can easily survive under-hood temperatures. The unique PERRIN configuration allows the EBCS Pro to be ultra-compact and work with multiple boost control system setups (internal and external wastegates). This allows the part to adapt to your ever-changing setups.

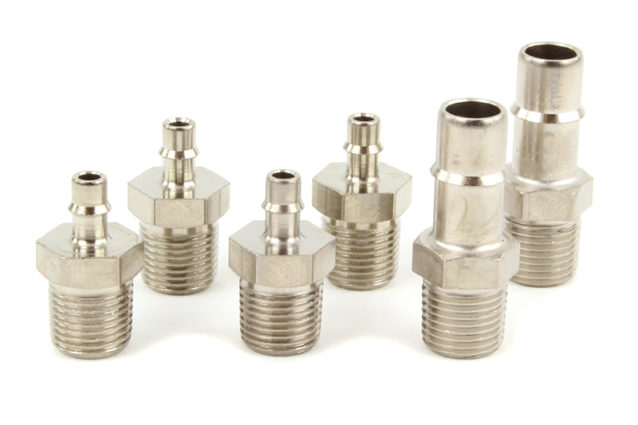

Nickel Plated Connectors

High quality nickel plated brass fittings resist corrosion and will not break. For race professionals the EBCS Pro will also accept AN fittings for the best connection possible.

Includes Everything You Need

Every EBCS Pro comes with the proper amount of vacuum hose and the proper fittings and mounting plates for your specific year, make, and model Subaru, making for a quick and easy installation process.

Product Details

  • Height 2.92"
  • Width 1.125"
  • 3 Ports 1/8-27 npt
  • Electrical 2 Wire Plug
  • CE EU Consumer Safety
  • UL429 USA Standards for valves
  • ROHS EU Restrictions of Lead

ASM-TAC-727 = 2015-2021 WRX & 2014-2019 Forester XT
ASM-TAC-729 = 2002-2007 WRX, 2004-2007 STI & 2004-2008 Forester XT
ASM-TAC-730 = 2008-2014 WRX & 2009-2013 Forester XT
ASM-TAC-731 = 2008-2021 STI

ASM-TAC-727

(1) PERRIN EBCS Pro assembly
(1) 5/32" ID Vacuum hose
(1) Bracket for washer bottle
(2) 5/32" Nickel barb 1/8NPT, 90 degree
(1) 5/32" Nickel barb 1/8NPT, straight
(1) M8 Button head screw
(2) M8 Flat washers
(1) 3/16"-3/16" Plastic connector
(1) M5 Short arm hex key
(4) Zip ties
Warranty & Instructions

ASM-TAC-729

(1) PERRIN EBCS Pro assembly
(1) 5/32" ID Vacuum hose
(1) Bracket for washer bottle
(1) 5/16" Nickel barb 1/8NPT, straight
(2) 5/32" Nickel barb 1/8NPT, straight
(1) M5 Short arm hex key
(1) M8 x 10 Button head SS screw
(1) M8 Flat washer SS
(1) M6 x 25 Button head socket cap screw SS
(1) M6 x 18 Fender washer SS
(1) M4 Short arm hex key
(10) Zip ties
Warranty & Instructions

ASM-TAC-730

(1) PERRIN EBCS Pro assembly
(1) 5/32" ID Vacuum hose
(1) Bracket for washer bottle
(1) 5/16" Nickel barb 1/8NPT, straight
(2) 5/32" Nickel barb 1/8NPT, straight
(1) M5 Short arm hex key
(2) M8 x 10 Button head SS screw
(1) M8 Flat washer SS
(10) Zip ties
Warranty & Instructions

ASM-TAC-731

(1) PERRIN EBCS Pro assembly
(1) 5/32" ID Vacuum hose
(1) Bracket for washer bottle
(1) 5/16" Nickel barb 1/8NPT, straight
(2) 5/32" Nickel barb 1/8NPT, straight
(1) M5 Short arm hex key
(1) M8 x 10 Button head SS screw
(2) M8 Flat washer SS
(1) 1/4"-1/4" Straight plastic connector
(10) Zip ties
Warranty & Instructions

NOTE:

Fits most turbo-charged cars

  • 2004 Subaru Forester XT
  • 2005 Subaru Forester XT
  • 2006 Subaru Forester XT
  • 2007 Subaru Forester XT
  • 2008 Subaru Forester XT
  • 2009 Subaru Forester XT
  • 2010 Subaru Forester XT
  • 2011 Subaru Forester XT
  • 2012 Subaru Forester XT
  • 2013 Subaru Forester XT
  • 2014 Subaru Forester XT
  • 2015 Subaru Forester XT
  • 2016 Subaru Forester XT
  • 2017 Subaru Forester XT
  • 2018 Subaru Forester XT
  • 2004 Subaru STI
  • 2005 Subaru STI
  • 2006 Subaru STI
  • 2007 Subaru STI
  • 2008 Subaru STI
  • 2009 Subaru STI
  • 2010 Subaru STI
  • 2011 Subaru STI
  • 2012 Subaru STI
  • 2013 Subaru STI
  • 2014 Subaru STI
  • 2015 Subaru STI
  • 2016 Subaru STI
  • 2017 Subaru STI
  • 2018 Subaru STI
  • 2019 Subaru STI
  • 2020 Subaru STI
  • 2021 Subaru STI
  • 2002 Subaru WRX
  • 2003 Subaru WRX
  • 2004 Subaru WRX
  • 2005 Subaru WRX
  • 2006 Subaru WRX
  • 2007 Subaru WRX
  • 2008 Subaru WRX
  • 2009 Subaru WRX
  • 2010 Subaru WRX
  • 2011 Subaru WRX
  • 2012 Subaru WRX
  • 2013 Subaru WRX
  • 2014 Subaru WRX
  • 2015 Subaru WRX
  • 2016 Subaru WRX
  • 2017 Subaru WRX
  • 2018 Subaru WRX
  • 2019 Subaru WRX
  • 2020 Subaru WRX
  • 2021 Subaru WRX
1 Year Warranty

PERRIN Performance warrants to the original purchaser that all PERRIN products will be free from defects in material and workmanship within a twelve (12) month period from the date of purchase. *Some exclusions apply

Proposition 65

warning.pngWARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov

Off Road Use Only

This product is legal in California only for racing vehicles which may never be used upon a highway. Check your local and federal laws prior to installation.

Estimated DIY Install Time: 30 minutes
Email Our Tech Department: [email protected]
Download Instructions

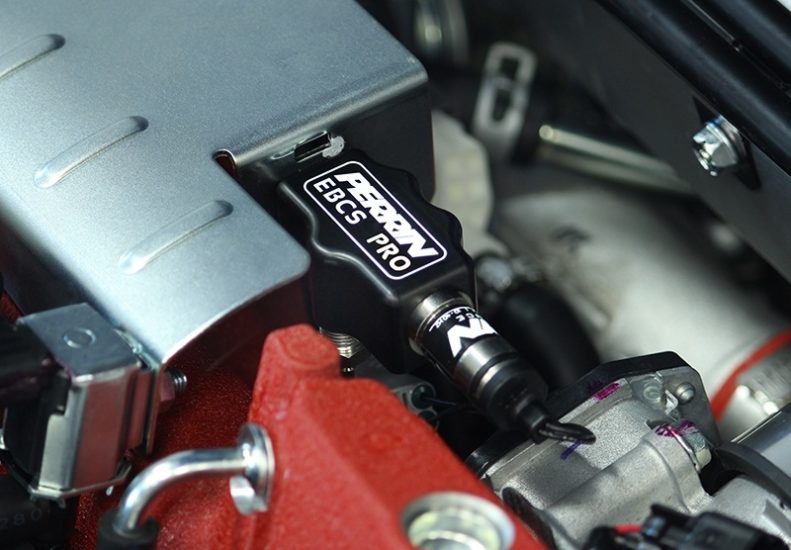

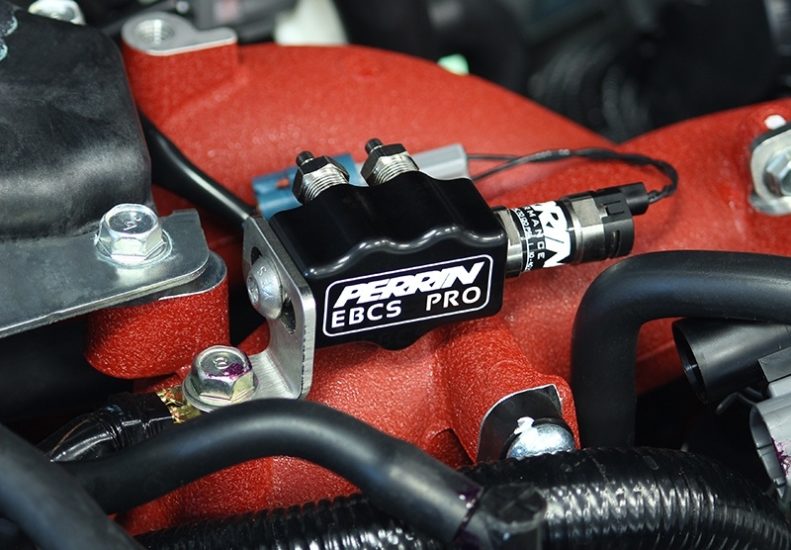

Gallery

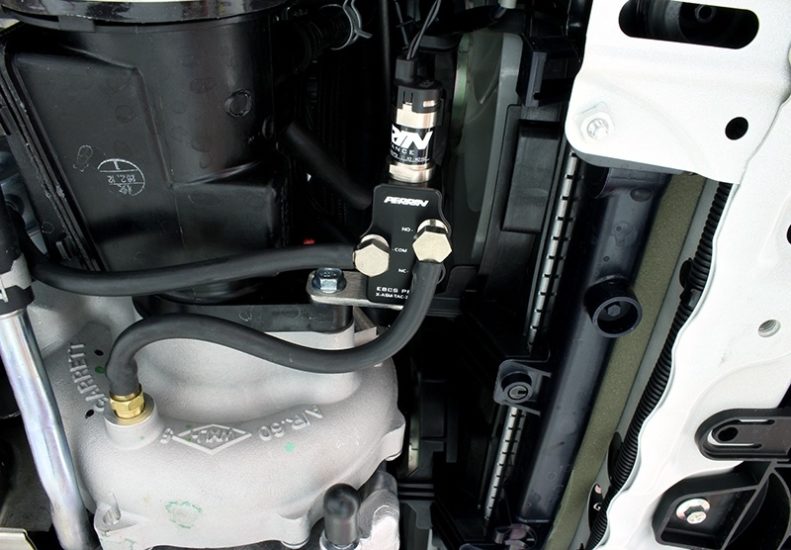

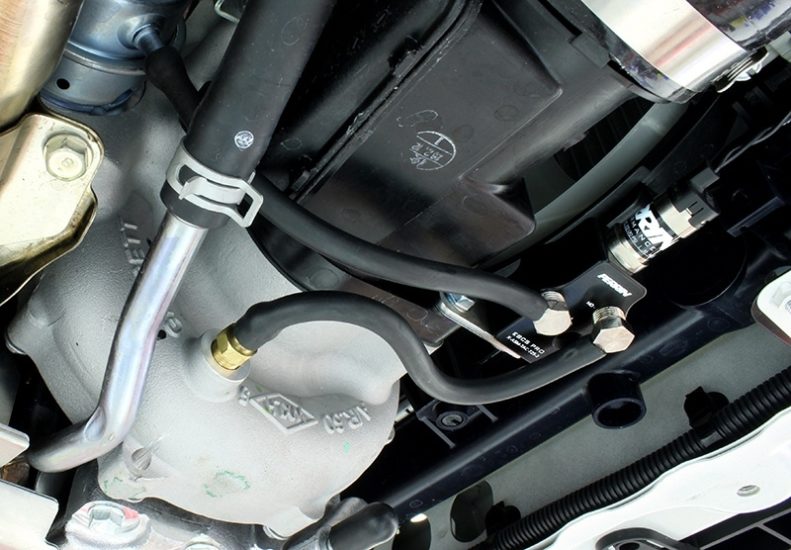

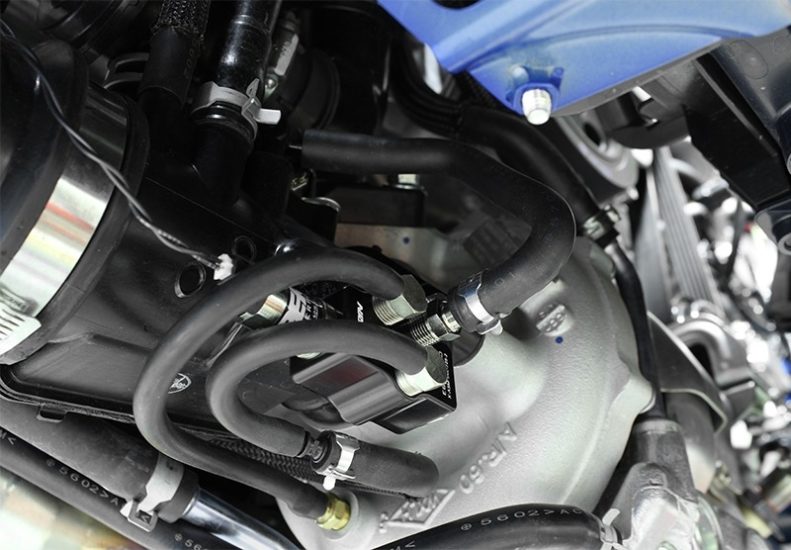

Installation Gallery
